| SWIVEL | RIGID | SIDE BRAKE | TOTAL BRAKE | Dia x Width (mm) | Total Height (mm) | Plate Size (mm) | Hole to Hole (mm) | Hole Dia (mm) | Load (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 401100 S | 401100 R | 401100 SB | – | 100 X 50 | 143 | 114 X 102 | 85 X 72 | 11 | 300 |
| 401125 S | 401125 R | 401125 SB | 401125 SB6 | 125 X 50 | 165 | 114 X 102 | 85 X 72 | 11 | 350 |
| 401150 S | 401150 R | 401150 SB | 401150 SB6 | 150 X 50 | 191 | 114 X 102 | 85 X 72 | 11 | 380 |
| 401200 S | 401200 R | 401200 SB | 401200 SB6 | 200 X 50 | 241 | 114 X 102 | 85 X 72 | 11 | 400 |

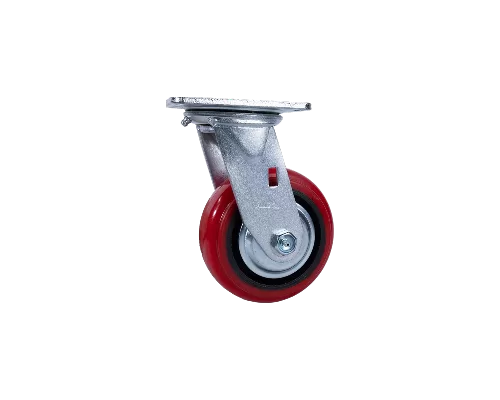

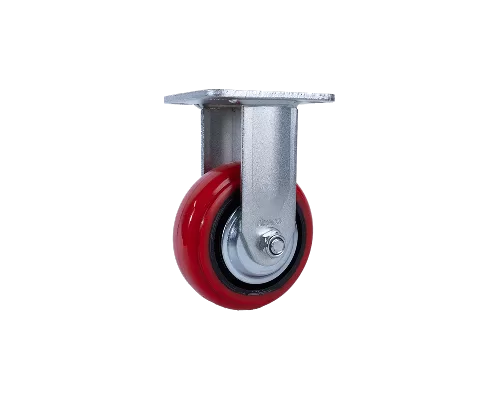

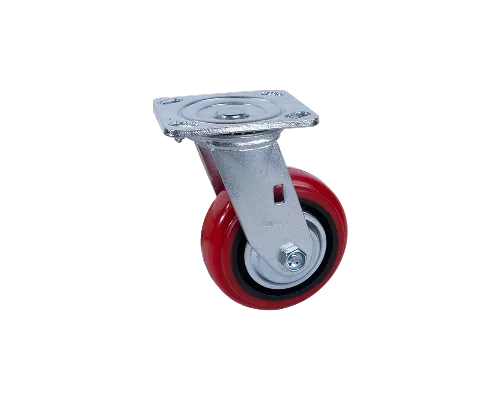

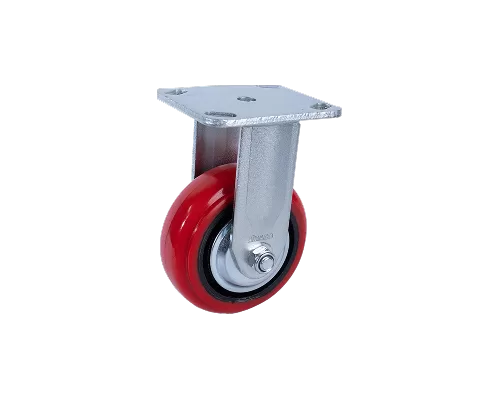

401 Series
AMC 70 Series Heavy Duty Casters
Load Range: 300-450kg/pc
| Wheel | 401 Series |
| Tread | Polyurethane (RED) |
| Centre | Cast Iron |
| Bearing | Roller |
