| SWIVEL | RIGID | SIDE BRAKE | TOTAL BRAKE | Dia x Width (mm) | Total Height (mm) | Plate Size (mm) | Hole to Hole (mm) | Hole Dia (mm) | Load (kg) |
|---|---|---|---|---|---|---|---|---|---|
| RHS 100CI45 | RHR 100CI45 | – | – | 100 X 45 | 164.5 | 150 X 110 | 120 X 60 OR 105 X 80 | 13 | 320 |
| RHS 150CI45 | RHR 150CI45 | – | RHB 150CI45 | 150 X 45 | 202 | 150 X 110 | 13 | 910 | |
| RHS 200CI45 | RHR 200CI45 | – | RHB 200CI45 | 200 X 45 | 252 | 150 X 110 | 13 | 1150 | |
| RHS 250CI54 | RHR 250CI54 | – | RHB 250CI54 | 250 X 54 | 303 | 150 X 110 | 13 | 1240 |
CI Series

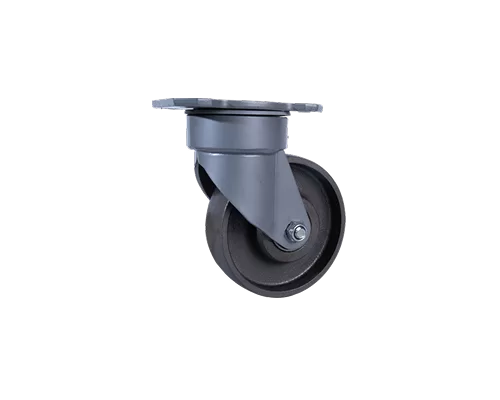

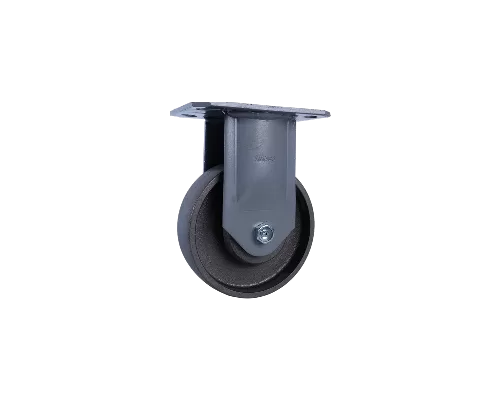

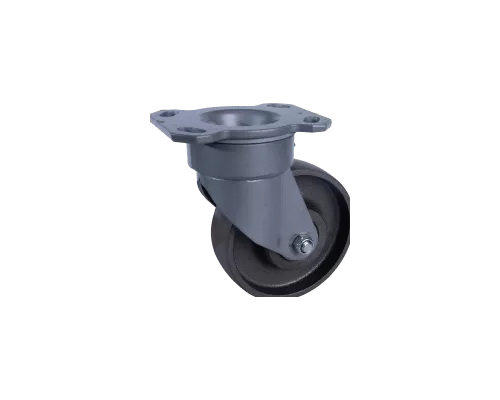

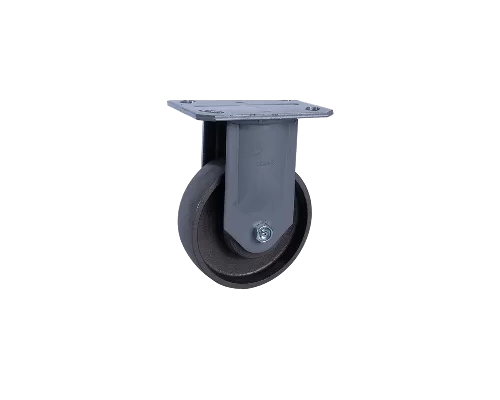

AMC-RH Series Extra Heavy Duty Casters
Load Range: 320-1500kg/pc
| Wheel | CI Series |
| Tread | Cast Iron (DARK GREY) |
| Centre | Cast Iron |
| Bearing | Double Ball |
