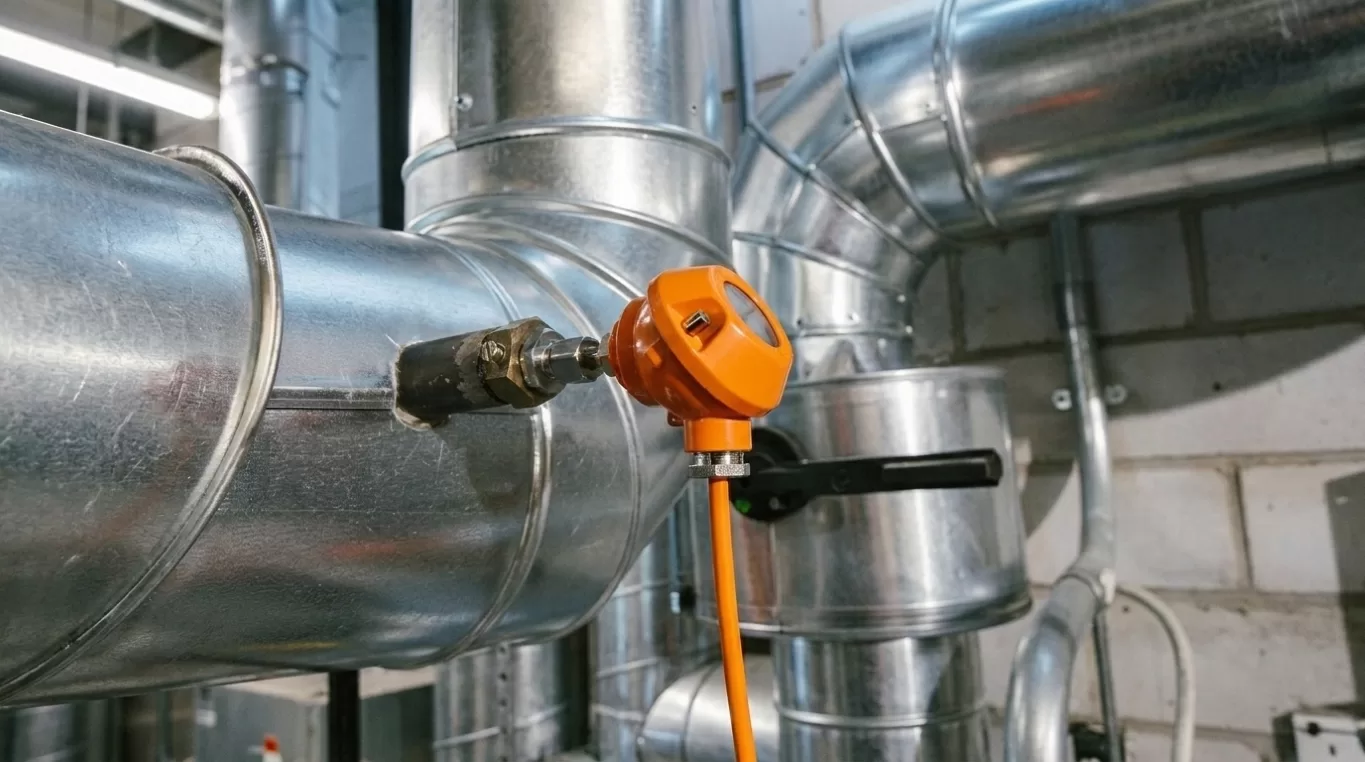

The Architecture Behind Heavy-Duty RTD and Thermocouple Assemblies

Temperature is one of the most critical process variables in industrial manufacturing. From chemical processing and oil & gas to food production, pharmaceuticals, power generation, and water treatment, maintaining accurate temperature measurement directly affects product quality, equipment reliability, operational safety, and energy efficiency.

However, many facilities still treat temperature sensors as interchangeable commodities rather than engineered process instruments.

This approach often results in premature sensor failures, inaccurate measurements, unexpected downtime, and costly production losses.

A reliable Industrial Equipment Supplier understands that temperature measurement is far more than selecting an RTD or thermocouple. It requires a complete industrial assembly engineered to withstand harsh process environments while delivering stable, accurate data throughout the instrument’s service life.

This article explores how heavy-duty RTD and thermocouple assemblies are designed to provide dependable temperature monitoring in demanding industrial applications.

Temperature is arguably the most frequently monitored process variable across industrial facilities. Despite its importance, many organizations continue to purchase temperature sensors based primarily on price rather than application suitability.

In real-world industrial environments, temperature assemblies operate under conditions far more demanding than laboratory testing. High-velocity pipelines create vortex-induced vibrations that place continuous mechanical stress on thermowells.

Chemical reactors expose sensors to corrosive acids, solvents, and aggressive process media. Repeated heating and cooling cycles gradually affect sensor stability, reducing measurement accuracy over time.

When these challenges are overlooked, the consequences extend beyond replacing a failed sensor.

Common operational issues include:

• Slow temperature response that delays process control
• Sensor drift leading to inaccurate process readings
• Product quality inconsistencies and rejected production batches
• Excessive fuel or energy consumption
• Unplanned equipment shutdowns and maintenance costs

A temperature sensor that reacts too slowly may allow reactors, heat exchangers, or furnaces to exceed their operating limits before corrective actions are taken. Likewise, inaccurate measurements can cause unnecessary energy consumption as control systems compensate for incorrect readings.

Rather than viewing temperature sensors as standard components, manufacturers should consider complete engineered assemblies designed specifically for their operating environment.

Working with an experienced Industrial Equipment Supplier ensures that each temperature assembly is selected according to process pressure, flow velocity, chemical compatibility, installation requirements, and long-term operational reliability.

A temperature sensor is only as reliable as the protective structure surrounding it.In industrial applications, the thermowell serves as the critical barrier between the process medium and the sensing element. It protects the sensor from pressure, corrosion, erosion, and mechanical damage while allowing temperature to be measured accurately.

Heavy-duty industrial temperature assemblies commonly utilize solid-machined barstock thermowells rather than fabricated or welded tube designs.

Solid construction provides superior mechanical strength and eliminates weld joints that may become weak points during continuous operation under high pressure.

Material selection depends entirely on the operating environment.

316L stainless steel is widely used across general industrial applications because it provides excellent corrosion resistance while maintaining hygienic properties required in food, pharmaceutical, and chemical processing.

For marine environments, offshore installations, and high-salinity processes, Monel offers exceptional resistance against seawater corrosion and chloride attack, making it suitable for long-term operation in aggressive environments.

Highly corrosive applications involving concentrated acids, sour gas, and aggressive chemical processing often require Hastelloy due to its outstanding corrosion resistance and long service life under severe operating conditions.

One of the most overlooked causes of thermowell failure is wake frequency, also known as vortex shedding.

As process fluids flow past the thermowell, alternating vortices generate cyclic vibration forces. If the natural frequency of the thermowell matches these forces, resonance occurs, significantly increasing stress and potentially leading to catastrophic failure.

Professional industrial temperature assemblies are designed using engineering principles aligned with recognized standards such as ASME PTC 19.3 TW, ensuring thermowell dimensions are suitable for operating pressure, flow velocity, temperature, and fluid density.

Proper engineering minimizes vibration while maintaining structural integrity throughout continuous plant operation.

The sensing element inside the thermowell also plays a major role in response performance. Heavy-duty assemblies use spring-loaded RTD or thermocouple elements that remain firmly pressed against the bottom of the thermowell.

This design eliminates air gaps between the sensing element and the thermowell tip, allowing heat to transfer more efficiently and improving response speed.

Depending on the application, manufacturers typically select either:

• Pt100 or Pt1000 RTDs for highly accurate, stable, and linear temperature measurement in precision process control.
• Type K, Type N, or Type S thermocouples for extremely high-temperature applications such as furnaces, kilns, and heat treatment systems.

A properly engineered assembly significantly improves T90 response time, enabling control systems to react faster to process temperature changes while maintaining tighter production control.

Even the most accurate sensor can produce unreliable measurements if its signal becomes distorted before reaching the control system.

Large industrial facilities often require sensor cables to travel hundreds of meters, or even several kilometers to the control room.

Raw RTD resistance signals or thermocouple millivolt outputs are extremely small and highly susceptible to electromagnetic interference (EMI) and radio-frequency interference (RFI).

Nearby equipment such as:

• Variable Frequency Drives (VFDs)
• High-power electric motors
• Pumps
• Compressors
• Heavy switching equipment

can introduce electrical noise into long cable runs, resulting in unstable readings, false alarms, or inaccurate process control.

To eliminate these issues, modern industrial temperature assemblies integrate smart transmitters directly inside the sensor connection head.

Instead of transmitting delicate millivolt or resistance signals across long distances, the transmitter converts the measurement immediately into an industrial communication signal.

This point-of-measurement signal conversion provides several operational advantages:

• Consistent measurement accuracy
• Superior immunity to EMI and RFI
• Reliable transmission across long cable runs
• Easier maintenance through remote diagnostics
• Improved predictive maintenance capabilities

For facilities operating large distributed control systems, smart transmitters help ensure that the temperature displayed in the control room accurately represents actual process conditions.

Reliable temperature monitoring depends on engineering details that are often overlooked in standard sensor designs. Enbbon heavy-duty industrial temperature assemblies are developed to deliver long-term stability while simplifying plant integration and reducing maintenance requirements.

Premium sensing elements maintain excellent calibration stability despite years of repeated exposure to elevated process temperatures. Reduced sensor drift minimizes recalibration requirements while maintaining consistent process accuracy.

Industrial plants use a wide variety of installation standards. Enbbon assemblies are available with multiple connection options, including:

• Threaded NPT and BSPT fittings
• ANSI and DIN flanged connections
• Hygienic sanitary tri-clamp fittings

This modular approach enables straightforward replacement and integration into existing process piping without major modifications.

For critical applications where downtime is unacceptable, optional dual-element RTD or thermocouple assemblies provide built-in redundancy.

If the primary sensing element fails, the secondary element can immediately assume monitoring duties, allowing maintenance to be scheduled without interrupting production.

This additional reliability is especially valuable in continuous processing industries where unscheduled shutdowns can result in significant production losses.

Accurate process temperature measurement requires far more than selecting an RTD or thermocouple from a catalogue. Long-term reliability depends on properly engineered thermowells, premium sensing elements, intelligent signal transmission, and application-specific mechanical design.

Choosing an experienced Industrial Equipment Supplier ensures that every temperature assembly is designed to withstand challenging operating conditions while delivering dependable performance throughout its service life.

With more than 35 years of industrial experience, Pusaco Industrial Supplies has become a trusted partner for manufacturers and process industries across Malaysia and Indonesia. Serving over 3,000 customers, Pusaco provides not only quality industrial products but also engineering expertise, technical consultation, and customised solutions tailored to each application’s operating conditions. The company offers a comprehensive range of temperature measurement products, including RTDs, thermocouples, temperature transmitters, and engineered thermowell assemblies, backed by experienced sales engineers and reliable after-sales support.

Whether your application involves high-pressure pipelines, corrosive chemical processing, high-temperature furnaces, or hygienic manufacturing environments, investing in engineered thermal assemblies helps improve process stability, reduce maintenance costs, and protect production efficiency.

If you’re planning a new installation or upgrading existing temperature instrumentation, contact us for expert advice on thermowell velocity calculations, material selection, smart transmitter integration, and custom RTD or thermocouple assemblies tailored to your specific process requirements.
